紅外線/熱感應/熱像儀 攝影機 110K 解析度: 320 x 240,
紅外線/熱感應/熱像儀 攝影機 307K 解析度: 640 x480,
FevIR Scan 皮膚溫度量測系統 Skin Temperature
Measurement System [ pdf 下載]
Ideal for Mass Screening. In today’s world of fast transit global travel,
of infectious disease will cross national and international boundaries in a
matter of hours. The SARS, Bird ‘Flu and Swine ‘Flu viruses have affected
tens of thousands of people and businesses with massive disruption to all
people in all walks of life.

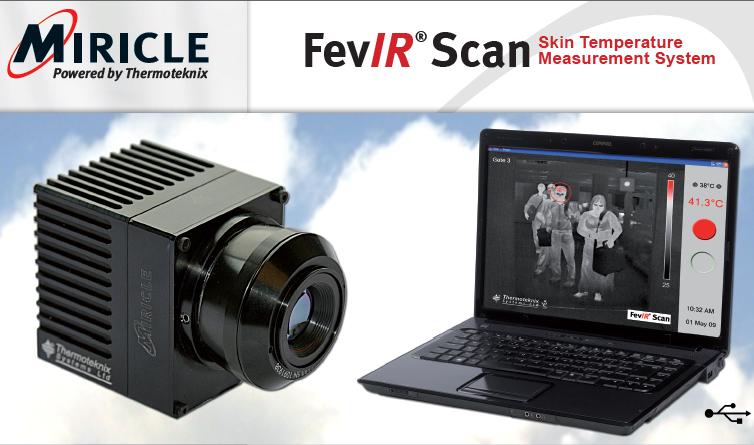

Miniature, discreet and ultra portable MIRICLE FevIR Scan Skin Temperature
Monitoring system provides peace of mind with high speed sensitive
temperature measurement for high volume pedestrian transit areas.
MIRICLE FevIR Scan thermal imaging and temperature measurement
system from Thermoteknix is easily installed, operated and re-located with
the very minimum of setup time and operator training.
On screen visible and audible alerts provide instant notification of high
temperature alarms. On-screen alerts identify one or more individuals in a
large crowd situation, aiding rapid dectection and maintaining passenger
The Thermoteknix MIRICLE 110K radiometric infrared thermal imaging
camera can detect temperature differences as small as 0.05°C and with its
high resolution 110,000 pixel detector and lens options, covers a wide or
narrow field of view as required for transit monitoring.
Password protected configuration to prevent unauthorised changes.
Operating at 50Hz (9Hz models available for export licence requiring
countries), MIRICLE 110K ensures that a high rate of human transit is
monitored effectively without slowing queues in busy areas.
Thermal Imaging Cameras, Cores &
Engines from Thermoteknix Systems Ltd

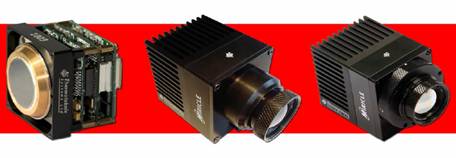

MIRICLE Cameras, cores
and engines are a range of uncooled long-wave thermal imagers
suitable for a wide variety of applications. MIRICLE Cameras
operate in TEC-less mode, so use less power, have a wider
operating temperature range and faster time to image.
MIRICLE cameras are
available either as self-contained camera units or as OEM cores
for integration into end-user products. With low weight and low
power consumption MIRICLE is ideal for applications such as UAV,
man-portable surveillance, driver aids and enhanced vision
systems for aircraft. There is also a range of PC software
options for configuration and control of MIRICLE.
110K – 384x288 detector
resolution: 110,592 pixels, with 35µm or 25µm pitch
307K – 640x480 detector resolution: 307,200 pixels and 25µm
KS Cameras (Sealed)
KS models are ready-to-use cameras supplied in a completely
sealed ruggedised housing (IP67). The cameras use a watertight
“Lemo” connector and short break-out cable with power, RS232 and
composite video signals.
KC Cameras (Cores)
KC models are OEM core modules for system integrators designing
their own systems. Camera connections are via lightweight ribbon
or discrete cable connectors. “MIRICLE Developer” documentation,
software and support package provides detailed information on
connectivity and serial link command messages. Software SDK
options are available for rapid prototyping of the USB video
XTi Technology® -
Thermoteknix patent pending
XTi Technology® cameras operate without the use of a mechanical
shutter or TEC. They have no moving parts, are smaller, lighter,
silent and more robust. XTi enabled cameras are never blind and
deliver continuous live video without the interruptions inherent
with shuttered cameras. XTi technology can be packaged into the
conventional KS waterproof or ultra light-weight XTi housings.
MIRICLE Camera Optics:
A wide range of lenses is available for MIRICLE (See reverse of
brochure for details). There are three Lens
1. Manual Focus Lenses
Available in focal lengths from 25mm to 50mm, most have
waterproof optical coatings and IP67 housings. User
2. Athermalised Lenses
Thermal Imaging lenses normally suffer from a loss of focus with
variations in environmental temperature. Thermoteknix passively
Athermalised lenses retain focus over a wide range of
temperatures and are available from 14.25mm to 35mm focal
length. User Interchangeable.
3. Motorised Focus
Motorised lenses use a different mechanical structure and are
normally larger and heavier - they can however be remotely
controlled Via RS232 instructions. Not User Interchangeable.
Thermoteknix can develop custom packages and or lens solutions
optimised to client specifications. MIRICLE cameras can also be
supplied with radiometric calibration.
• Border security •
R & D •
TherMonitor® Reporter Software
Supports all Major Infrared Camera Brands (click for details)
Software for Thermal Infrared Image
A suite of 4
components: IR Workbench, IR Explorer, TherMonitor Analyser and
IR Reporter. Powerful tools to identify and record faults or
plant condition. Easy access to images and measurements - simple
'drag & drop' or OLE linking to your choice of software.
TherMonitor IR Explorer
seemlessly extends Microsoft Explorer to support multiple
infrared image folders. View, enhance, measure temperature, copy
and transfer images. Automatic ranging shows differences in
temperature over time at a glance.

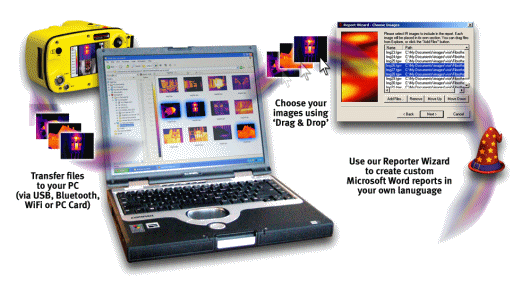

Creating reports has
never been easier. Let TherMonitor Reporter wizard build
multi-page reports using your company template. Alternatively,
simply 'drag & drop' images directly into Microsoft Word. Print
or email your report to clients or colleagues for viewing or
further analysis. TherMonitor advanced OLE core software allows
reports to be updated with new images or re-analysed directly
within the Word document. Automatic generation of work list
summaries and re-inspection reports allow efficient repair and
applications, TherMonitor Reporter Pro provides additional
analysis and trending tools. PosiTrak® patented image
co-ordinate alignment tools provide multiple combination
facilities: Image alignment, warping, mosaic, averaging,
subtraction, calibrated true area measurement and more…
Temperature versus Time trending.
Automatic and manual extraction of temperature measurements from
multiple images and graphical trending show potential failure
and their expected time scales. Linear and exponential
prediction allow scenario and replacement planning as part of
your routine Predictive Maintenance Programme.
