ZT 5085e 12U Redundant Host Packet-Switched Platform

¤U¸üPDF
Product Photo

This packet-switched platform features a PICMG® 2.16-compatible midplane supporting a Redundant Host architecture for I/O-intensive applications. Part of the Advanced Managed Platform offering, it provides OEM equipment designers with a carrier-grade, standards-based, high availability computing platform for demanding mission-critical applications.

The ZT 5085e CompactPCI® platform supports five-nines (99.999%) availability with built-in redundancy for active system components including system master CPU boards, Ethernet switches, intelligent shelf managers (ISMs), power supplies and fan trays. Redundant ISMs enable customers to manage multiple Intelligent Platform Management Interface (IPMI)-based components in the platform and conduct comprehensive diagnostics remotely for enhanced system reliability. Ethernet signals are routed across the midplane without the use of cables, saving time in set-up, maintenance and repair and minimizing the thermal challenges of traditional cabling methods.

The ZT 5085e platform is part of our IPnexus™ family of embedded packet products and is also designed to interoperate with any third-party PICMG 2.16-compatible boards.

Highlights

Midplane Configuration and Details

The ZT 5085e platform is flexible and can accommodate multiple configurations. It can be configured as two independent PCI bus segments, each with up to two dedicated system masters. Use of the ZT 5524e Single Board Computer with the ZT 4901e I/O Mezzanine Expansion Card option allows bridging from one PCI segment to the other.

The ZT 5085e also supports a Redundant Host architecture, providing fault tolerance at the system master level. Two system masters can control the 12 peripheral slots on PCI segments one and two in both active/active and active/standby modes. For this configuration, two pairs of ZT 5524e/ZT 4901e boards are required (the first mated pair fits in slots 9-10 and the second fits slots 11-12, see Figure 1).

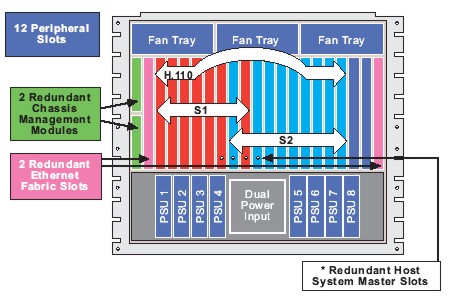

Figure 1: Component layout for ZT 5085e platform

Figure 1

In both these configurations, the 12 peripheral slots support one single H.110 bus spanning slots three through eight and 13 through 18. All slots support IEEE 1101.11-style, 80mm-deep transition cards in the rear panel I/O section directly behind the midplane. Each node and fabric slot may be independently configured for 3.3V or 5V VI/O operation.

Intelligent Shelf Manager

The ZT 5085e includes two redundant IPnexus CPC7301 Intelligent Shelf Managers (ISMs) operating in active/standby mode. The CPC7301 is the central management component for all Performance Technologies PICMG 2.16-compliant platforms. It uses standards-based interfaces, allowing management of third-party IPMI-based products within an IPnexus platform. It communicates with components in the ZT 5085e via point-to-point IPMB busses in a unique star topology to achieve comprehensive, highly available management.

Redundant Power Subsystems

The ZT 5085e supports an N+N redundant, scalable power solution with up to eight standard 3U x 8HP power supplies. The power supplies are divided into two separate power subsystems, each housing four power supplies and receiving input power from redundant DC or AC inputs. This is critical in central office locations where two independent power feeds deliver redundant DC input into high availability systems. The two power subsystems maintain isolation of these inputs (no diode OR’ing) and provide protection so that failure of one power input will not affect the other.

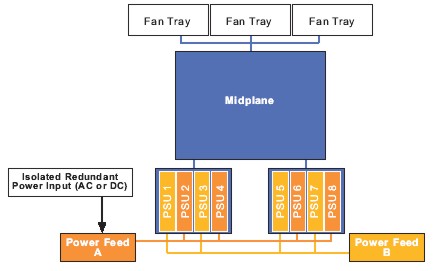

Figure 2: The ZT 5085e platform redundant power-input architecture

Figure 2

Cooling Architecture

With 250W power supplies, the ZT 5085e platform supports more than 40W per slot or when scaled to 325W DC power supplies, powers and cools up to 50W per node slot and 80W per fabric slot. The platform houses three hot-swappable fan trays, serviceable from the front. Each tray includes three blowers and spans the distance from front to back of the chassis. The front blower cools the front card cage area and the rear blower cools the power supplies and rear of the card cage. The middle blower cools both areas, providing N+1 redundant cooling for the entire chassis (see Figure 3).

Figure 3: Cross section/side view of the ZT 5085e platform

Figure 3

Product Interoperability

Processor and I/O Boards

Ethernet Switches

Management

Power Supplies

Fan Tray

Specifications

The ZT 5085e is compliant with the following specifications:

Power Input
AC input:110 to 220V AC (50/60Hz)
DC input: -36 to -60V DC

Output
Power Supplies
+5V

+3.3V
+12V
-5V
Six 325WDC supplies (3+3)
90A
120A
15A
3A
Eight 325WDC supplies (4+4)
120A
160A
20A
4A
Six 250WAC supplies (3+3)
120A*
16.5A
4.5A
Eight 250WAC supplies (4+4)
160A*
22A
6A


* ZT 6303 AC power supply, the 5V and 3.3V rails share current

Physical Height: 12U, 21" (533mm)
Width: 17.2" (436mm) without rack-mount flanges. Rack mount flanges allow mounting to 19” racks.
Depth: 17" (431mm)
Weight: 97.5 lbs. (44.2 kg)
Regulatory Compliance Designed for NEBS level 3 and ETSI Installations

Safety
UL/cUL 60950 Safety for Information Technology Equipment E179737
- UL File Number E179737
EN/IEC 60950 Safety for Information Technology Equipment
CB Certificate and Report Scheme
CE CertificateEmissions Test Regulations
FCC, Class B
EN 55022/CISPR 22 Class B Radiated and Conducted Emissions Tests
EN 55025/CISPER 24
EN-61000-3-2 Power Line Harmonic Emissions
EN-61000-3-3 Power Line Fluctuation and Flicker
EN-61000-4-2 Electro-Static Discharge (ESD)
EN-61000-4-3 Radiated Susceptibility
EN-61000-4-4 Electrical Fast Transient Burst
EN-61000-4-5 Power Line Surge
EN-61000-4-6 Frequency Magnetic Fields
EN-61000-4-11 Voltage Dips, Variation & Short Interruptions

Network Equipment-Building System (NEBS) Requirements
GR-1089-CORE
Sect. 2 Electrical Discharge
Sect. 3.2.2 Radiated RF Emissions
Sect. 3.2.3 AC Line Conducted Emissions-Voltage
Sect. 3.2.4 AC & DC Line Conducted Emissions- Current
Sect. 3.3.1 RF Radiated Fields
Sect. 3.3.3 RF Common Mode

GR-63-CORE issue 1
Sect. 5.1.1.1 Low-Temperature Exposure and Thermal Shock
Sect. 5.1.1.2 High-Temperature Exposure and Thermal Shock
Sect. 5.1.1.3 High Relative Humidity Exposure
Sect. 5.3.1 Handling Drop Tests- Packaged Equipment
Sect. 5.3.2 Unpackaged Equipment Drop Tests
Sect. 5.4.1 Earthquake Tests
Sect. 5.4.2 Office Vibration Test Procedure
Sect. 5.4.3 Transportation Vibration-Packaged Equipment
Sect. 5.6 Acoustic Noise Test

Ordering Information


The ZT 5085e may be ordered with the following options:

Base Enclosure and Power Input Panel
C1: AC input panel
C2: DC input panel

Power Supplies
P1: Six CPC6314 325W DC power supplies
P2: Eight CPC6314 325W DC power supplies
P3: Six ZT 6303 250W AC power supplies
P4: Eight ZT 6303 250W AC power supplies

Intelligent Shelf Manager
I0: No CPC7301A-1A Intelligent Shelf Manager
I1: One CPC7301A-1A Intelligent Shelf Manager
I2: Two CPC7301A-1A Intelligent Shelf Manager

ISM Rear Transition Module
R0: No RTM4820A ISM RTM
R1: One RTM4820A ISM RTM
