CPC5505 PICMG® 2.16 High-Performance, Low-Power Single Board Computer

下載PDF

The IPnexus™ CPC5505 PICMG® 2.16-Compliant Single Board Computer takes advantage of the latest advances in the embedded processor and support chipset roadmap establishing the benchmark of Intel® Pentium® M-based SBCs for CompactPCI®-based designs.

The CPC5505 is part of the Advanced Managed Platform offering and embedded product family. It is a single slot system master CPU board operating at 1.6 GHz/1.8 GHz, fully compliant with the PICMG 2.16 packet-switched backplane and 2.9 Intelligent Platform Management Interface (IPMI) standards. It also provides a 32-bit/33MHz CompactPCI bus.

The CPC5505 has a mezzanine connector that provides future extensibility for in-network applications by integrating dual GigE routings and 64-bit PCI to the PMC site. PMC modules supporting applications such as security, storage, video streaming and firewall can be loaded into the site, enhancing system functionality and performance.

Highlights

• Single slot 6U single board computer
• 1.6 GHz/1.8 GHz Intel® Pentium® M processor
• Intel 6300ESB I/O Controller Hub
• 400MHz front side bus
• 1MB L2 cache
• One PT7MC site supporting 64-bit PCI and dual 10/100/1000 Ethernet
• Optional hard drive
• Up to 2GB of DDR SDRAM with ECC at 3.2 GB/s peak
• 32-bit/33MHz CompactPCI bus bandwidth
• Dual 10/100/1000 Base-T Ethernet links through backplane J3 (PICMG 2.16)
• Two IPMB interfaces on backplane J1 and J2 (PICMG 2.9)
• Hot-swappable (PICMG 2.1 R2.0)
• Support for VxWorks®, Windows® 2000/XP and Linux

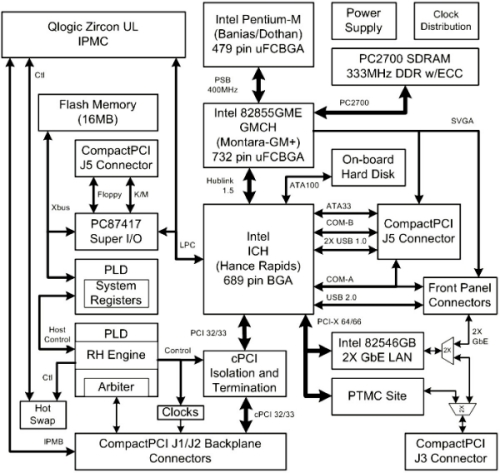

Computing Core

• Intel® Pentium® M - 1.6 GHz/1.8GHz
• 400MHz front side bus
• Intel® 855GME chipset with 6300ESB I/O controller hub
• Supports up to 2GB DDR SDRAM with ECC at 333MHz
• 16MB onboard flash
• One 64-bit/66MHz local PCI-X bus (PTMC)
• One 32-bit/33MHz CompactPCI bus

Peripherals and I/O

• Single PT7MC site
• Single 2.5” IDE HD
• Dual10/100/1000 Ethernet ports
• Two COM ports
• Single VGA port
• Three USB ports (2.0)
• Compatible with ZT 4807eA RTM
  　

About Advanced Managed Platforms

Performance Technologies' Advanced Managed Platform products are built upon the intelligent AMP™ Architecture, which ensures standards-based, reliable and comprehensive management throughout all active platform components, including the power supplies.

Specifications

The ZT 5505 is compliant with the following specifications:

• Compliant with PICMG 2.0 R3.0 (CompactPCI) and PICMG 2.1 R2.0 (hot-swap) specifications
• Compliant with PICMG 2.16 (packet switching backplane) and 2.9 (CompactPCI system management)
• Compliant with the standard IPMI v1.5 specification
• Designed for NEBS Level 3 and ETSI installations

Warranty

One year
