The IPnexus™ CPC5086 12U General Purpose PICMG® 2.16 Platform is an extremely flexible, high availability platform, configurable for both compute-intensive and I/O-intensive applications. Part of the Advanced Managed Platform offering, it provides OEM equipment designers with a carrier-grade, standards-based, high availability computing platform for demanding, mission-critical applications.
The CPC5086 platform supports five-nines (99.999%) availability with built-in redundancy for active system components including Ethernet switches, intelligent shelf managers (ISMs), power supplies and fan trays. Redundant ISMs enable customers to manage multiple single board computers and conduct chassis diagnostics remotely for enhanced system reliability. Ethernet signals are routed across the midplane without the use of cables, saving time in setup, maintenance and repair and minimizing the thermal challenges of traditional cabling methods.
The CPC5086 platform does not include a CompactPCI® bus, ensuring that there are no compatibility issues with boards that may have conflicts with a PCI bus.
The midplane supports up to 18 independent servers communicating over the PICMG 2.16-compliant Ethernet midplane (slots 3-20) and a single H.110 telephony bus spanning all 18 node slots. There are three V(I/O) planes that can be set separately for either 3.3V or 5V operation; two for each fabric plane and one for the 18 node slots plane.

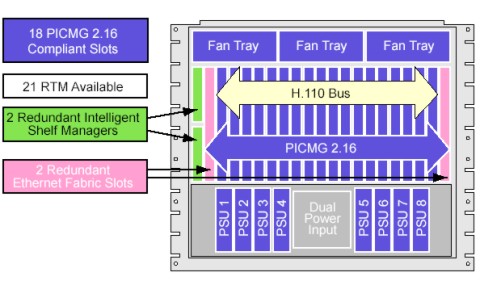

Figure 1: Component layout for the CPC5086 platform
The CPC5086 includes two redundant IPnexus CPC7301 Intelligent Shelf Managers (ISMs) operating in active/standby mode. The CPC7301 is the central management component for all Performance Technologies’ PICMG 2.16-compliant platforms. It implements the PICMG 2.9 specification for a standards-based interface, allowing management of third-party, IPMI-based products within an IPnexus platform. The ISM software interfaces are comprehensive, including a Web-based GUI, command line interface (CLI), SNMP and more. It communicates with components in the CPC5086 via point-to-point IPMB buses in a unique star topology to achieve secure, comprehensive, highly available management.
The CPC5086 platform supports a redundant, scalable power solution, accommodating up to eight 3U CompactPCI power supplies, divided into two separate power subsystems. This power architecture provides N+N redundant power supplies and receives input power from redundant DC or AC inputs.
This is critical in central office locations where two power plants deliver redundant DC input into high availability devices. These two power subsystems maintain isolation of these inputs (no diode OR’ing) to ensure that failure of one will not affect the power input of the other.

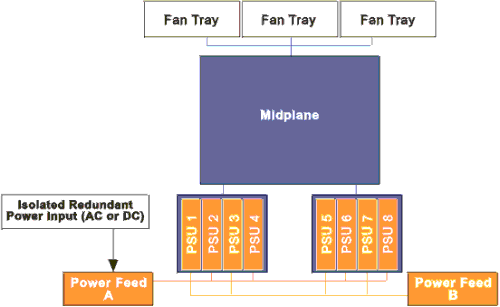

Figure 2. The CPC5086 platform redundant power-input architecture
The CPC5086 can power and cool up to 1300W total. The platform houses three hot-swappable fan trays, serviceable from the front. Each tray includes three blowers and spans the distance from front to back of the chassis. The front blower cools the front card cage area and the rear blower cools the power supplies and rear of the card cage. The middle blower cools both areas, providing N+1 redundant cooling for the entire chassis (see Figure 3).
Performance Technologies’ Advanced Managed Platform offering, built upon the intelligent AMP™ Architecture, ensures standards-based, reliable and comprehensive management throughout all active platform components, including the power supplies.

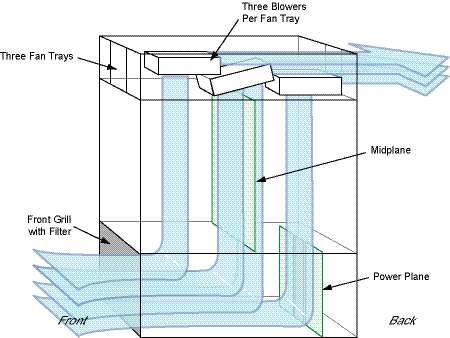

Figure 3: Airflow cross section/side view of the CPC5086 platform.
The CPC5086 is compliant with the following:
| Power |
Input AC input:110 to 220V AC (50/60Hz) DC input: -36 to -60V DC Output
|
|||||||||||||||||||||||||
| Physical | Height: 12U, 21" (533mm) Width: 17.2" (436mm) without rack-mount flanges. Rack mount flanges allow mounting to 19” racks Depth: 17" (431mm) Weight: 97.5 lbs. (44.2 kg) |
|||||||||||||||||||||||||
| Regulatory Compliance | Designed for NEBS Level 3 and ETSI Installations Safety UL/cUL 60950 Safety for Information Technology Equipment E179737 (UL File Number E179737) EN/IEC 60950 Safety for Information Technology Equipment CB Certificate and Report Scheme CE Certificate Emissions Test Regulations FCC, Class B EN 55022/CISPR 22 Class B Radiated and Conducted Emissions Tests EN 55025/CISPER 24 EN-61000-3-2 Power Line Harmonic Emissions EN-61000-3-3 Power Line Fluctuation and Flicker EN-61000-4-2 Electro-Static Discharge (ESD) EN-61000-4-3 Radiated Susceptibility EN-61000-4-4 Electrical Fast Transient Burst EN-61000-4-5 Power Line Surge EN-61000-4-6 Frequency Magnetic Fields EN-61000-4-11 Voltage Dips, Variation & Short Interruptions Network Equipment-Building System (NEBS) Requirements GR-1089-CORE Sect. 2 Electrical Discharge Sect. 3.2.2 Radiated RF Emissions Sect. 3.2.3 AC Line Conducted Emissions-Voltage Sect. 3.2.4 AC & DC Line Conducted Emissions-Current Sect. 3.3.1 RF Radiated Fields Sect. 3.3.3 RF Common Mode GR-63-CORE issue 1 Sect. 5.1.1.1 Low-Temperature Exposure and Thermal Shock Sect. 5.1.1.2 High-Temperature Exposure and Thermal Shock Sect. 5.1.1.3 High Relative Humidity Exposure Sect. 5.3.1 Handling Drop Tests- Packaged Equipment Sect. 5.3.2 Unpackaged Equipment Drop Tests Sect. 5.4.1 Earthquake Tests Sect. 5.4.2 Office Vibration Test Procedure Sect. 5.4.3 Transportation Vibration- Packaged Equipment Sect. 5.6 Acoustic Noise Test |
|||||||||||||||||||||||||
The CPC5086 may be ordered with the following options:
Base Enclosure and Power Input Panel
C1: AC input panel
C2: DC input panel
Power Supplies
P1: Six CPC6314 325W DC power supplies
P2: Eight CPC6314 325W DC power supplies
P3: Six ZT 6303 250W AC power supplies
P4: Eight ZT 6303 250W AC power supplies
Intelligent Shelf Manager
I0: No CPC7301A-1A Intelligent Shelf Manager
I1: One CPC7301A-1A Intelligent Shelf Manager
I2: Two CPC7301A-1A Intelligent Shelf Manager
ISM Rear Transition Module
R0: No RTM4820A ISM RTM
R1: One RTM4820A ISM RTM
