Product Description
Product Description |
|
|
The PP01 is an industrial computer which is
designed to operate under harsh environmental conditions. It complies with
the PCI-104 specification and can be stacked with other PCI-104 boards or
mounted on different types of carrier boards. |
|
Technical Data |
|
|
CPU |
PowerPC |
|
Memory |
64MHz memory bus operation SDRAM up to 64MB Flash 16MB FRAM 64KB non-volatile Serial EEPROM 16kbit for factory
settings |
|
Interfaces |
10/100Mbits/s Ethernet Two UART RS232 serial interfaces
(COM1/COM2) USB 1.1 Two independent CAN interfaces |
|
Display interface |
Four characters, 5 by 7 pixels For additional display adapter PCB
(on request) |
|
PCI Interface |
32-bit PCI interface at PCI-104
connector J1 Support of one external master |
|
Miscellaneous |
Real-time clock Temperature sensor Three push buttons and LED on
optional display PCB (on request) |
|
Electrical Specifications |
Supply voltage/power consumption: MTBF: 225,000h @ 50°C |
|
Mechanical Specifications |
Dimensions: conforming to PC-104
specification Weight: 90g |
|
Environmental Specifications |
Temperature range (operation): Temperature range (storage):
-40..+85°C Relative humidity (operation):
max. 95% non-condensing Relative humidity (storage): max.
95% non-condensing Altitude: -300m to + 3,000m Shock: 15g/11ms Bump: 10g/16ms Vibration (sinusoidal):
2g/10..150Hz |
|
Safety |
PCB manufactured with a
flammability rating of 94V-0 by UL recognized manufacturers |
|
EMC |
Tested according to EN 55022
(radio disturbance), IEC1000-4-2 (ESD) and IEC1000-4-4 (burst) with regard
to CE conformity |
|
Software Support |
MENMON VxWorks Linux CANopen firmware (Vector
Informatik) CANopen support: MEN Driver
Interface System (MDIS for Windows, Linux, VxWorks, QNX, RTX, OS-9) MSCAN/Layer2 support: MEN Driver
Interface System (MDIS for Windows, Linux, VxWorks, QNX, RTX, OS-9) |

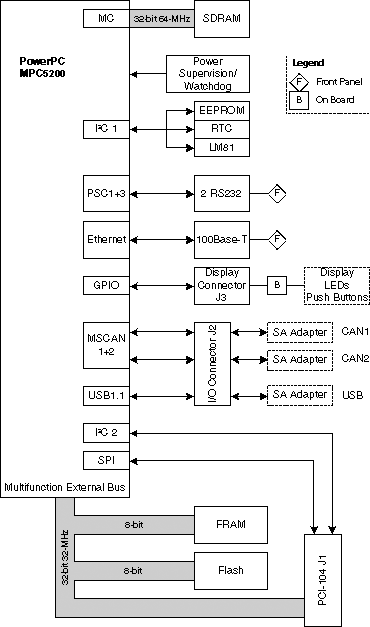

Diagram |
|
Related Products & Downloads |
|
|
Standard Hardware |
|
|
|
PP01, PCI-104 Module, MPC5200/384MHz, 32MB SDRAM, 16MB Flash, 64KB FRAM, Fast Ethernet, 2 RS232, 2 CAN (via SA adapters), USB 1.1 (via SA adapter), operating temperature -40..+85°C |
|
|
PP01, PCI-104 Module, MPC5200/384MHz, 128MB SDRAM, 16MB Flash, 64KB FRAM, Fast Ethernet, 2 RS232, 2 CAN (via SA adapters), USB 1.1 (via SA adapter), operation temperature -0..+60°C |
|
Please refer to our PCI-104 compare chart for a complete
overview of our growing range of available PCI-104 modules. |
|
|
Accessories |
|
|
|
SA adapter kit for PP01 with 2 CAN interfaces led to a ribbon-cable connector; operating temperature 0..+60°C |
|
|
Ethernet adapter D-Sub to RJ45 receptacle (cable 10cm) |
|
|
Y-adapter RS232 D-Sub connector to dual D-Sub connector (cable 10cm) |
|
|
PCI-104 evaluation kit: Mini ATX carrier board EC01 with 1 PC/104-Plus slot, 2 PCI slots; PP01 with PowerPC MPC5200 / 384MHz, 32MB DRAM, 8MB Flash, 64KB FRAM, Fast Ethernet, 2 COMs; temperature range: 0..+60°C; incl. external PSU, SA-adapter kit (dual CAN, USB), Ethernet adapter D-Sub to RJ45 and RS232 Y-adapter (08EK04-00 = EC01-05 + PP01-00) |
|
Software |
|
|
|
ELinOS V.3.1 - Embedded Linux incl. RTAI real-time extension for PowerPC, English version. The Sysgo Development Kit includes the board support packages (BSPs) for MEN cards F1N, B11, A12, A15, D3, SC13, F6, EM04/N and PP01. The package includes 1 year ELinOS development support and all ELinOS updates and upgrades during this period for free. It additionally includes the BSP support for MEN hardware by MEN. --- N.B.: For correct handling of the ELinOS software support it is mandatory to sign and return the enclosed support agreement directly to Sysgo! The Sysgo support agreement is automatically prolonged for another year if not cancelled 3 months prior to expiration. |
|
|
ELinOS V.3.1 - Embedded Linux incl. RTAI real-time extension for PowerPC, German version. The Sysgo Development Kit includes the board support packages (BSPs) for MEN cards F1N, B11, A12, D3, SC13, F6, EM04/N and PP01. The package includes 1 year ELinOS development support and all ELinOS updates and upgrades during this period for free. It additionally includes the BSP support for MEN hardware by MEN. --- N.B.: For correct handling of the ELinOS software support it is mandatory to sign andreturn the enclosed support agreement directly to Sysgo! The Sysgo support agreement is automatically prolonged for another year if not cancelled 3 months prior to expiration. |
|
|
VxWorks® BSP for PP01, Tornado 2.0.2 .. 2.2 / VxWorks® 5.4..5.5 |
|
|
|
|
|
MDIS4/2004 low-level driver sources for MSCAN/Layer2 |
|
|
MDIS4/2004 low-level CANopen driver (Master) |
|
|
MDIS4/2004 Windows® NT4/W2K driver for CANopen |
|
|
MENMON (Firmware) for PP01 (binary code) |
|
Documentation |
|
|
|
PP01 errata |
|
|
PP01 user manual |
;)
