The P13 is based on the PC-MIP ANSI mezzanine
standard. It can be used as an I/O extension in any type of bus system, i.e.
CPCI, PXI, VME or on any type of stand-alone SBC. Appropriate PC-MIP carrier
cards in 3U, 6U and other formats are available from MEN or other
manufacturers. Comparable with the larger foot print PMC mezzanine cards,
PC-MIP boards also support PCI bus. |
|
Technical Data |
|
|
Input/Output |
48-bit TTL I/O 6 groups, alternatively input or
output Active terminators can be
activated for each group Output low current (VOL max.
0.55V): min. 64mA Output high current (VOH min.
2.0V): min. -15mA Input high current: max. 100µA Input low current: max. -100µA Input voltage: min. -0.5V, max. 6V |
|
PCI Characteristics |
32-bit PCI, complying with PCI
Local Bus Specification, Rev. 2.1 Target |
|
Peripheral Connections |
Via front panel on a shielded
36-pin half-pitch D-Sub receptacle connector Via J3/carrier board (rear I/O) |
|
Electrical Specifications |
Supply voltage/power consumption: MTBF: 334,000h @ 50°C |
|
Mechanical Specifications |
Dimensions: PC-MIP Type I/II
conforming to PC-MIP specification Weight: |
|
Environmental Specifications |
Temperature range (operation): Temperature range (storage):
-40..+85°C Relative humidity (operation):
max. 95% non-condensing Relative humidity (storage): max.
95% non-condensing Altitude: -300m to + 3,000m Shock: 15g/0.33ms, 6g/6ms Vibration: 1g/5..2,000Hz |
|
Safety |
PCB manufactured with a
flammability rating of 94V-0 by UL recognized manufacturers |
|
EMC |
Tested according to EN 55022 /
1999-05 (radio disturbance) and EN 55024 / 1999-05 (immunity) with regard to
CE conformity |
|
Software Support |
MEN Driver Interface System (MDIS
for Windows, Linux, VxWorks, QNX, RTX, OS-9) |

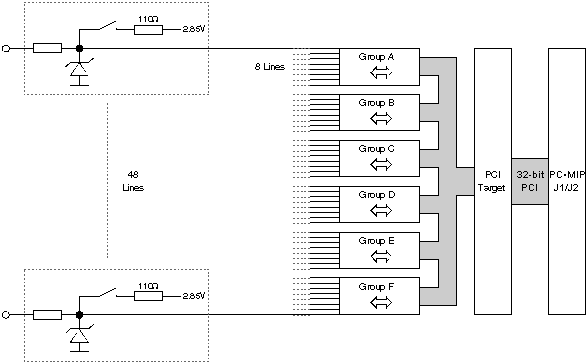

Diagram |
|
