P12 - PC-MIP 10/100Base-T Ethernet

PDF¤U¸ü

Product Description

The P12 is based on the PC-MIP ANSI mezzanine standard. It can be used as an I/O extension in any type of bus system, i.e. CPCI, PXI, VME or on any type of stand-alone SBC. Appropriate PC-MIP carrier cards in 3U, 6U and other formats are available from MEN or other manufacturers. Comparable with the larger foot print PMC mezzanine cards, PC-MIP boards also support PCI bus.
The P12 adds standard Ethernet functionality with a high 1.5kVrms isolation to all types of industrial applications from small embedded-system up to high-end workstation configurations.
The P12 features the fast 21143 Ethernet controller, supporting 10/100Base-T via an RJ45 connector at the front panel. The PC-MIP offers full duplex support and the MAC address in an onboard serial EEPROM.
　

P12 - PC-MIP 10/100Base-T Ethernet

　

Technical Data

Ethernet Interface

10/100Base-T with three status LEDs at front
　

Full duplex support
　

Media Access Control (MAC) address stored in onboard serial EEPROM
　

PCI Characteristics

32-bit PCI, complying with PCI Local Bus Specification, Rev. 2.1
　

Target and initiator
　

Peripheral Connections

Via front panel on a standard 8-pin RJ45 receptacle connector
　

Electrical Specifications

Isolation voltage: 1.5kV RMS (0..1000m above sea level)
　

Supply voltage/power consumption:
• +5V (4.85V..5.25V), 120mA typ. (operation), 80mA typ. (stand-by)
• +3.3V (3.15V..3.6V), 150mA typ. (operation), 30mA typ. (stand-by)
　

MTBF: 316,000h @ 50°C
　

Mechanical Specifications

Dimensions: PC-MIP Type II conforming to PC-MIP specification
　

Weight: 30g
　

Environmental Specifications

Temperature range (operation):
• 0..+60°C
• Industrial temperature range on request
• Airflow: min. 10m³/h
　

Temperature range (storage): -40..+85°C
　

Relative humidity (operation): max. 95% non-condensing
　

Relative humidity (storage): max. 95% non-condensing
　

Altitude: -300m to + 3,000m
　

Shock: 15g/0.33ms, 6g/6ms
　

Vibration: 1g/5..2,000Hz
　

Safety

PCB manufactured with a flammability rating of 94V-0 by UL recognized manufacturers
　

EMC

Tested according to EN 55022 / 1999-05 (radio disturbance) and EN 55024 / 1999-05 (immunity) with regard to CE conformity
　

Software Support

WindowsNT
　

VxWorks
　

Linux
　

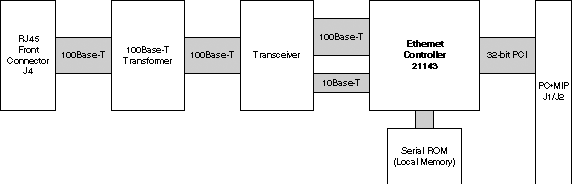

Diagram

Related Products & Downloads

Standard Hardware

15P012-00

P12, PC-MIP Type II (front I/O), 21143 Ethernet controller, 10/100Mbit/s, 100Base-T, RJ45

15P012-02

P12, PC-MIP Type II (front I/O), 21143 Ethernet controller, 10/100Mbit/s, 100Base-T, RJ45, -40..+85°C

Please refer to our PC-MIP and PMC compare chart for a selection of mezzanine functions.
　

Software

For driver software for various operating systems including Windows® and Linux, please refer to www.intel.com.
　

Documentation

20P000-00

PC-MIP draft specification Rev. 0.92b

20P012-00

P12 user manual

15P012-EU

EU Manufacturer declaration for this product
