Product Description

The P11 is based on the PC-MIP ANSI mezzanine standard. It can be used as an I/O extension in any type of bus system, i.e. CPCI, PXI, VME or on any type of stand-alone SBC. Appropriate PC-MIP carrier cards in 3U, 6U and other formats are available from MEN or other manufacturers. Comparable with the larger foot print PMC mezzanine cards, PC-MIP boards also support PCI bus.
The P11 is a high-performance quadruple UART with RS422/485 interface. Each 16C950 UART channel has 128-deep transmit and receive FIFOs, with readable levels and user-defined thresholds. All UARTs are capable of delivering up to 15Mbps asynchronous data throughput simultaneously, and are software-compatible with commonly used 16C450, 550, 650 and 750 UARTs. The UARTs support Big Endian byte-lane conversion, 5, 6, 7, 8 and 9 bit data framing and Infra-red (IrDA) receiver and transmitter.
The P11 is supplied with a RS422/485 line interface at the front and via the carrier board connector. It supports 4-wire full duplex transmission.

P11 - PC-MIP Quad RS422/485 UART



Technical Data

UART

4 16C950 high-performance UARTs
• Full software compatibility with 16C550 UARTs
• Configured with I/O or memory base address


8 128-byte FIFOs


Data rates
• UART controller supports up to 15Mbps
• Physical interface supports up to 10Mbps


Full duplex/half duplex interface


PCI Characteristics

32-bit PCI, complying with PCI Local Bus Specification, Rev. 2.2


Target


Peripheral Connections

Via front panel on a shielded 26-pin half-pitch D-Sub receptacle connector


Via J3/carrier board


Electrical Specifications

Supply voltages/power consumption:
• +5V (4.85V..5.25V), 130mA
• +3.3V (3.15V..3.6V), 40mA


MTBF: 190,000h @ 50°C


Mechanical Specifications

Dimensions: PC-MIP Type II conforming to PC-MIP specification


Weight: 28g


Environmental Specifications

Temperature range (operation):
• 0..+60°C
• Industrial temperature range on request
• Airflow: min. 10m³/h


Temperature range (storage): -40..+85°C


Relative humidity (operation): max. 95% non-condensing


Relative humidity (storage): max. 95% non-condensing


Altitude: -300m to + 3,000m


Shock: 15g/0.33ms, 6g/6ms


Vibration: 1g/5..2,000Hz


Safety

PCB manufactured with a flammability rating of 94V-0 by UL recognized manufacturers


EMC

Tested according to EN 55022 / 1999-05 (radio disturbance) and EN 55024 / 1999-05 (immunity) with regard to CE conformity


Software Support

WindowsNT


VxWorks


OS-9


Linux (on request)

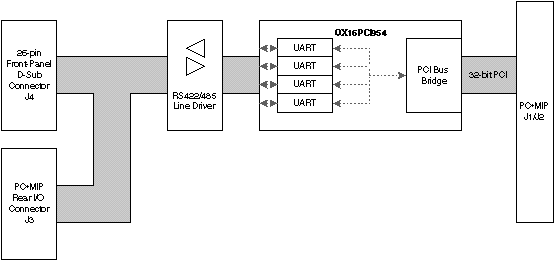

Diagram

Related Products & Downloads

Standard Hardware

15P011-00

P11, PC-MIP Type II (front I/O), quad RS422/485 UART, 16450-compatible, with 128-byte FIFO

Please refer to our PC-MIP and PMC compare chart for a selection of mezzanine functions.


Accessories

05P002-00

PC-MIP cable, 2m, with 26-pin half-pitch 26-pin D-Sub plug/housing to pig tail

Software

13P010-01

SCF driver for P10/P11 M-Module, OS-9(PPC), PowerPC object code

13P010-60

VxWorks® driver for P10/P11

13P010-70

Windows®NT: UART driver for P10/P11/AD45

Documentation

20P000-00

PC-MIP draft specification Rev. 0.92b

20P011-00

P11 user manual

21APPN008

Application Note: Using P10/P11/AD45 under Linux

15P011-EU

EU Manufacturer declaration for this product
