P10 - PC-MIP Quad RS232 UART

Product Description

The P10 is based on the PC-MIP ANSI mezzanine standard. It can be used as an I/O extension in any type of bus system, i.e. CPCI, PXI, VME or on any type of stand-alone SBC. Appropriate PC-MIP carrier cards in 3U, 6U and other formats are available from MEN or other manufacturers. Comparable with the larger foot print PMC mezzanine cards, PC-MIP boards also support PCI bus.
The P10 is a high-performance quadruple UART with RS232 interface. Each 16C950 UART channel has 128-deep transmit and receive FIFOs, with readable levels and user-defined thresholds. All UARTs are capable of delivering up to 15Mbps asynchronous data throughput simultaneously, and are software-compatible with commonly used 16C450, 550, 650 and 750 UARTs. The UARTs support Big Endian byte-lane conversion, 5, 6, 7, 8 and 9 bit data framing and Infra-red (IrDA) receiver and transmitter as well as several other sophisticated functions for high-end serial communication requirements.
The P10 is supplied with RS232 line physics at the front and alternatively with TTL-level signals via the carrier board connector. This permits you to connect "SA adapters" with different line drivers (TTY, RS485 etc.) in a CPCI system via rear I/O.
　

Technical Data

UART	4 16C950 high-performance UARTs • Full software compatibility with 16C550 UARTs • Configured with I/O or memory base address 　 8 128-byte FIFOs 　 Data rates • UART controller supports up to 15Mbps • Physical interface supports up to 120kbps
PCI Characteristics	32-bit PCI, complying with PCI Local Bus Specification, Rev. 2.2 　 Target
Peripheral Connections	Via front panel on a shielded 26-pin half-pitch D-Sub receptacle connector (RS232 level) 　 Via J3/carrier board (TTL level)
Electrical Specifications	Supply voltages/power consumption: • +5V (4.85V..5.25V), 130mA • +3.3V (3.15V..3.6V), 40mA 　 MTBF: 190,000h @ 50°C
Mechanical Specifications	Dimensions: PC-MIP Type II conforming to PC-MIP specification 　 Weight: 34g
Environmental Specifications	Temperature range (operation): • 0..+60°C • Industrial temperature range on request • Airflow: min. 10m³/h 　 Temperature range (storage): -40..+85°C 　 Relative humidity (operation): max. 95% non-condensing 　 Relative humidity (storage): max. 95% non-condensing 　 Altitude: -300m to + 3,000m 　 Shock: 15g/0.33ms, 6g/6ms 　 Vibration: 1g/5..2,000Hz
Safety	PCB manufactured with a flammability rating of 94V-0 by UL recognized manufacturers
EMC	Tested according to EN 55022 / 1999-05 (radio disturbance) and EN 55024 / 1999-05 (immunity) with regard to CE conformity
Software Support	WindowsNT 　 VxWorks 　 OS-9 　 Linux (on request)

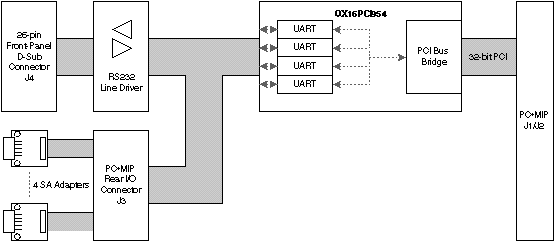

Diagram

Related Products & Downloads

Standard Hardware
15P010-00	P10, PC-MIP Type II (front I/O), quad RS232 UART, 16450 compatible with 128-byte FIFO
Please refer to our PC-MIP and PMC compare chart for a selection of mezzanine functions.
Accessories
05P002-00	PC-MIP cable, 2m, with 26-pin half-pitch 26-pin D-Sub plug/housing to pig tail
08SA01-00	Serial interface adapter, RS232, not optically isolated, 0..+60°C
08SA02-00	Serial interface adapter, RS422/485, half duplex, optically isolated, 0..+60°C
08SA02-01	Serial interface adapter, RS422/485, full duplex, optically isolated, 0..+60°C
08SA02-07	Serial interface adapter, RS422/485, full duplex, optically isolated, temperature range: -40..+85°C
08SA03-00	Serial interface adapter, RS232, optically isolated, 0..+60°C
08SA03-01	Serial interface adapter, RS232, optically isolated, -40..+85°C
08SA04-00	Serial interface adapter, TTY, optically isolated, 0..+60°C
Software
13P010-01	SCF driver for P10/P11 M-Module, OS-9(PPC), PowerPC object code
13P010-60	VxWorks® driver for P10/P11
13P010-70	Windows®NT: UART driver for P10/P11/AD45
Documentation
20P000-00	PC-MIP draft specification Rev. 0.92b
20P010-00	P10 user manual
21APPN008	Application Note: Using P10/P11/AD45 under Linux
15P010-EU	EU Manufacturer declaration for this product
