M99 - Carrier Board Test M-Module

PDF¤U¸ü

Product Description

The M99 is based on the M-Module ANSI mezzanine standard. It can be used as an I/O extension in any type of bus system, i.e. CPCI, PXI, VME or on any type of stand-alone SBC. Appropriate M-Module carrier cards in 3U, 6U and other formats are available from MEN or other manufacturers.
The M99 can be used for functional testing of M-Module carrier boards for two- and three-row M-Modules according to the M-Module specification. Its functionality relies on the parallel interface and timer component 68230. An on-board SRAM permits testing of data transfer and DMA.
In addition interrupt handling, M-Module identification and trigger lines can be tested. 16 LEDs at the front of the module ease testing, with 8 LEDs being user-configurable.


M99 - Carrier Board Test M-Module

Technical Data

68230 Parallel Interface Timer

68000 bus compatible


Port modes include:
• Bit I/O
• Unidirectional 8-bit and 16-bit
• Bidirectional 8-bit and 16-bit


Programmable handshaking options


24-bit timer


Five separate interrupt vectors


Separate port and timer interrupt service requests


Miscellaneous

MA-Module


8 status LEDs


8 user-programmable LEDs


DMA capability


QSPI interface


Up to 512KB SRAM


Compatible with A4/A4N (QSPI, TPU lines, A16)


±12V failure detection


M-Module Characteristics

A08, A24, D08, D16, D32, INTA, INTB, INTC, DMA16, DMA32, TRIGI, TRIGO, IDENT


Burst access D16, D32


Electrical Specifications

Supply voltage/power consumption:
• +5V (4.85V..5.25V), 300mA typ.
• ±12V, 1mA typ.


MTBF: tbd.


Mechanical Specifications

Dimensions: conforming to M-Module Standard


Weight: 76g


Environmental Specifications

Temperature range (operation):
• 0..+60°C
• Industrial temperature range on request
• Airflow: min. 10m³/h


Temperature range (storage): -40..+85°C


Relative humidity range (operation): max. 95% non-condensing


Relative humidity range (storage): max. 95% non- condensing


Altitude: -300m to + 3,000m


Shock: 15g/0.33ms, 6g/6ms


Vibration: 1g/5..2,000Hz


Safety

PCB manufactured with a flammability rating of 94V-0 by UL recognized manufacturers


EMC

Tested according to EN 55022 / 1999-05 (radio disturbance) and EN 55024 / 1999-05 (immunity) with regard to CE conformity


Software Support

MEN Driver Interface System (MDIS3 for OS-9)

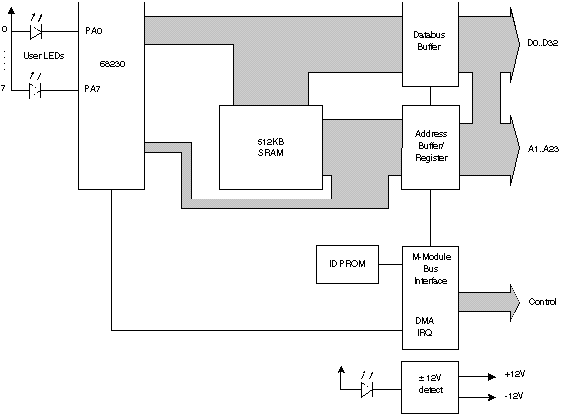

Diagram
