M78 - 4-Channel Digital Oscilloscope

PDF¤U¸ü

Product Description

The M78 is based on the M-Module ANSI mezzanine standard. It can be used as an I/O extension in any type of bus system, i.e. CPCI, PXI, VME or on any type of stand-alone SBC. Appropriate M-Module carrier cards in 3U, 6U and other formats are available from MEN or other manufacturers.
The M78 is an M-Module for acquisition of up to four analog and eight digital signals with a wide bandwidth at a maximum resolution of 12 bits and a sampling rate of up to 50MS/s. A local 16MB RAM buffers the converted values. The buffer contents can be transferred to the host.
The M-Module has onboard input signal conditioning. This is implemented adding a small PCB, which guarantees maximum flexibility for manifold applications.
Variable trigger functions permit application of the M78 as a genuine digital storage oscilloscope and implementation of modular multichannel systems. Typical applications include simulators, analysis systems, high-speed data loggers or automotive diagnostic systems.
The M78 is software compatible with the 1-channel 12-bit/40-MHz oscilloscope M67.


Technical Data

Analog Input

4 analog input channels


Prepared for input conditioning adapter


±1V max. input range (without input conditioning adapter)


Analog Performance

High SNR: >60dB @ max. sampling frequency (with external low jitter clock)


Analog input bandwidth: >200MHz


General Purpose Inputs

2 digital GPIs per channel (GPI0..GPI7) (TTL/LVTTL)


GPI0 is configurable as an external clock source (LVTTL recommended)


GPI1 is configurable as an external trigger source (TTL/LVTTL)


Binary Outputs

4 outputs to control signal conditioning adapter or external hardware


Trigger

Internal trigger, signal-sensitive with adjustable hysteresis function


Free trigger positioning


Rising or falling edge


Programmable trigger delay


External trigger


Software trigger


Acquisition Clock

External 10kHz..50MHz


Internal low noise 48MHz


Internally divided by FPGA (base: 48MHz)


System Clock

FPGA Clock 100MHz


SDRAM Clock 100MHz


Buffer

16MB memory


Organized as a ring FIFO


Width: 4 words


2 MSamples with four active channels


4 MSamples with two active channels


8 MSamples with one active channel


Random access by the host


A/D Conversion

12 bits resolution, max. 50MS/s


Track/hold


Oversampling technology


Recording

12 ADC bits per channel


Up to 8 external binary inputs


Peripheral Connections

Via front panel on 4 shielded receptacle connectors


Via carrier board (rear I/O)


M-Module Characteristics

A08, D16, D32, INTA, IDENT, TRIGI


Electrical Specifications

Supply voltage/power consumption:
• +5V (4.85V..5.25V), tbd.


MTBF: tbd. @ 50°C


Mechanical Specifications

Dimensions: conforming to M-Module Standard


Weight: 100g (incl. input adapter)


Environmental Specifications

Temperature range (operation):
• 0..+60°C
• Industrial temperature range on request
• Airflow: min. 10m³/h


Temperature range (storage): -40..+85°C


Relative humidity (operation): max. 95% non-condensing


Relative humidity (storage): max. 95% non-condensing


Altitude: -300m to + 3,000m


Shock: 15g/11ms


Bump: 10g/16ms


Vibration (sinusoidal): 2g/10..150Hz


Safety

PCB manufactured with a flammability rating of 94V-0 by UL recognized manufacturers


EMC

Tested according to IEC1000-4-2 (ESD) and IEC1000-4-4 (burst) with regard to CE conformity


Software Support

MEN Driver Interface System (MDIS for Windows, Linux, VxWorks, QNX, RTX, OS-9)

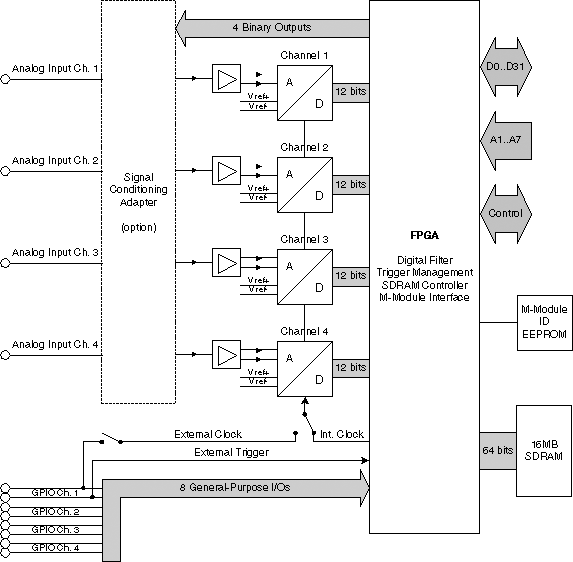

Diagram
