Product Description
Product Description |
|
|
The Kahlua Box is a powerful, small footprint
control unit for low-cost target applications based on the Kahlua PowerPC
processor family. |
|
Technical Data |
|
|
Mechanical Specifications |
Aluminum enclosure Dimensions: depth 245mm, width
266mm, height 80mm IP rating: IP30 according to EN
60529 Weight: tbd. kg (depending on
set-up) |
|
CPU |
6U/4HP single-board computer for
sandwich mounting PowerPC MPC8245 @ 300MHz |
|
Memory |
Level 1 Cache integrated in
MPC8245 SO-DIMM slot for up to 512MB SDRAM 100MHz memory bus operation Flash 2MB Serial EEPROM 2KB for factory
settings CompactFlash (TM) card interface
for Flash ATA (true IDE) via on-board IDE |
|
Interfaces |
Two 10/100Mbits/s Ethernet
channels One UART RS232 serial interface
(COM1) Three UARTs (COM2..COM4) IDE port for hard disk drives Keyboard/mouse USB |
|
Mezzanine Extensions |
090009-04: three PC-MIPs Type I/II
on local PCI bus 090009-03: three M-Modules 090009-05: two PMCs Option for all three versions:
carrier board for four additional M-Modules |
|
Miscellaneous |
Serial real-time clock with
integrated 56-byte NVRAM Serial hardware watchdog in
supervisory circuit Temperature sensor Hex switch for user settings User LEDs (external) Reset/abort buttons |
|
Electrical Specifications |
Power supply unit PSU MTBF: tbd. |
|
Environmental Specifications |
Temperature range (operation): Temperature range (storage):
-40..+85°C Relative humidity (operation):
max. 95% non-condensing Relative humidity (storage): max.
95% non-condensing Altitude: -300m to + 3,000m Shock: 15g/11ms Bump: 10g/16ms Vibration (sinusoidal):
2g/10..150Hz |
|
Safety |
PCB manufactured with a
flammability rating of 94V-0 by UL recognized manufacturers |
|
EMC |
Tested according to EN 55022 /
1999-05 (radio disturbance) and EN 55024 / 1999-05 (immunity) with regard to
CE conformity |
|
Software Support |
VxWorks OS-9 Linux QNX MENMON |

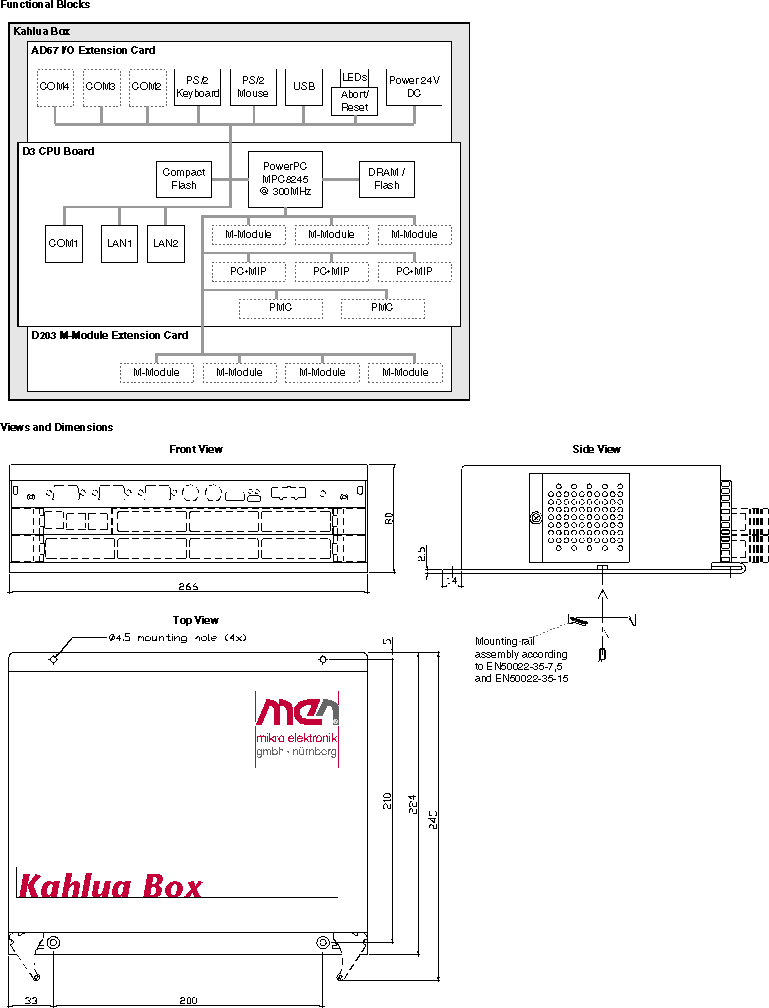

Diagram |
|
Related Products & Downloads |
|
|
Standard Hardware |
|
|
|
Kahlua Box with M-Module slots, consisting of: aluminum enclosure, width: 266mm, depth: 245mm, height: 80mm; PSU, 24V DC, 40W; 6U 4HP single-board computer for sandwich mounting, CPU MPC8245/300MHz, 256MB DRAM, 32MB CompactFlash, 2MB Flash, 3 M-Module slots; 0..+45°C. Fanless version: max. ambient temp. = +45°C w/o mezzanine modules, derated by 2.25°C per Watt power dissipation on mezzanines. |
|
|
Kahlua Box with PC-MIP slots, consisting of: aluminum enclosure, width: 266mm, depth: 245mm, height: 80mm; PSU, 24V DC, 40W; 6U 4HP single-board computer for sandwich mounting, CPU MPC8245/300MHz, 256MB DRAM, 32MB CompactFlash, 2MB Flash, 3 PC-MIP slots;0..+45°C. Fanless version: max. ambient temp. = +45°C w/o mezzanine modules, derated by 2.25°C per Watt power dissipation on mezzanines. |
|
|
Kahlua Box with PMC slots, consisting of: aluminum enclosure, width: 266mm, depth: 245mm, height: 80mm; PSU, 24V DC, 40W; 6U 4HP single-board computer for sandwich mounting, CPU MPC8245/300MHz, 256MB DRAM, 32MB CompactFlash, 2MB Flash, 2 PMC slots; 0..+45°C. Fanless version: max. ambient temp. = +45°C w/o mezzanine modules, derated by 2.25°C per Watt power dissipation on mezzanines. |
|
|
Kahlua Box with M-Module slots, consisting of: aluminum enclosure, width: 266mm, depth: 245mm, height: 80mm; PSU, 24V DC, 40W; 6U 4HP single-board computer for sandwich mounting, CPU MPC8245/300MHz, 256MB DRAM, 32MB CompactFlash, 2MB Flash, 3 M-Module slots; 0..+45°C. Forced air cooling. |
|
|
Kahlua Box with PC-MIP slots, consisting of: aluminum enclosure, width: 266mm, depth: 245mm, height: 80mm; PSU, 24V DC, 40W; 6U 4HP single-board computer for sandwich mounting, CPU MPC8245/300MHz, 256MB DRAM, 32MB CompactFlash, 2MB Flash, 3 PC-MIP slots;0..+45°C. Forced air cooling. |
|
|
Kahlua Box with PMC slots, consisting of: aluminum enclosure, width: 266mm, depth: 245mm, height: 80mm; PSU, 24V DC, 40W; 6U 4HP single-board computer for sandwich mounting, CPU MPC8245/300MHz, 256MB DRAM, 32MB CompactFlash, 2MB Flash, 2 PMC slots; 0..+45°C. Forced air cooling. |
|
Systems & Card Cages |
|
|
Tailor your individual Kahlua Box by selecting the desired
I/O functionality from our range of
M-Module,
PC-MIP and
PMC mezzanine cards. |
|
|
Accessories |
|
|
|
D203, 6U 4HP, for sandwich mounting inside Kahlua Box, carrier board for 4 M-Modules |
|
|
IDE mounting kit 44-pin to 44-pin; 50.8 mm; installation kit for Kahlua Box or A12, D3, A15 with AD67, temperature range: -40..+85°C |
|
You can download the data sheet for hard disk 0710-0012 from MEN's website. |
|
|
|
IDE hard disk 2.5", 9.5mm, 20GB; for mounting on-board (harddisk mounting kit may be additionally required) |
|
|
Industrial IDE hard disk 2,5", 40GB, 24 hours/7 days, 0..+60°C; for on-board mounting (hard disk mounting kit may be required additionally) |
|
|
CompactFlash card, 512MB, Type I, 0..+60°C |
|
|
CompactFlash card, 512MB, Type I, -40..+85°C |
|
|
CompactFlash card, 64MB, Type I, 0..+60°C |
|
|
CompactFlash card, 128MB, Type I, 0..+60°C |
|
|
CompactFlash card, 256MB, Type I, 0..+60°C |
|
|
CompactFlash card, 64MB, -40..+85°C |
|
|
CompactFlash card, 128MB, -40..+85°C |
|
|
CompactFlash card, 256MB, Type I, -40..+85°C |
|
|
512MB DRAM 0..+60°C for 02D003A03 |
|
|
512MB DRAM 0..+60°C for 02D003B02 |
|
|
512MB DRAM 0..+60°C for 02D003C04 |
|
|
Serial interface adapter, RS232, not optically isolated, 0..+60°C |
|
|
Serial interface adapter, RS422/485, half duplex, optically isolated, 0..+60°C |
|
|
Serial interface adapter, RS422/485, full duplex, optically isolated, 0..+60°C |
|
|
Serial interface adapter, RS422/485, full duplex, optically isolated, temperature range: -40..+85°C |
|
|
Serial interface adapter, RS232, optically isolated, 0..+60°C |
|
|
Serial interface adapter, RS232, optically isolated, -40..+85°C |
|
|
Serial interface adapter, TTY, optically isolated, 0..+60°C |
|
For more functions realized with SA adapters, see the listing on MEN's website. You can also view our SA adapter compare chart for a quick overview of different functions. Please contact sales to make sure that these SA adapters can
be used in the board configuration you are looking for. |
|
|
Software |
|
|
|
ELinOS V.3.1 - Embedded Linux incl. RTAI real-time extension for PowerPC, English version. The Sysgo Development Kit includes the board support packages (BSPs) for MEN cards F1N, B11, A12, A15, D3, SC13, F6, EM04/N and PP01. The package includes 1 year ELinOS development support and all ELinOS updates and upgrades during this period for free. It additionally includes the BSP support for MEN hardware by MEN. --- N.B.: For correct handling of the ELinOS software support it is mandatory to sign and return the enclosed support agreement directly to Sysgo! The Sysgo support agreement is automatically prolonged for another year if not cancelled 3 months prior to expiration. |
|
|
ELinOS V.3.1 - Embedded Linux incl. RTAI real-time extension for PowerPC, German version. The Sysgo Development Kit includes the board support packages (BSPs) for MEN cards F1N, B11, A12, D3, SC13, F6, EM04/N and PP01. The package includes 1 year ELinOS development support and all ELinOS updates and upgrades during this period for free. It additionally includes the BSP support for MEN hardware by MEN. --- N.B.: For correct handling of the ELinOS software support it is mandatory to sign andreturn the enclosed support agreement directly to Sysgo! The Sysgo support agreement is automatically prolonged for another year if not cancelled 3 months prior to expiration. |
|
|
OS-9(000) V.2.2/3.x: BSP for F1N, B11, A12, D3, SC13, Kahlua Box (object code, MEN) |
|
|
OS-9(000) V4.2: BSP for F1N, B11, A12, A15, D3, SC13, Kahlua Box (object code, MEN) |
|
|
QNX® 6 BSP for F1N, B11, A12, A15, D3, SC13, Kahlua Box (object code, MEN) |
|
|
VxWorks® V.5.4..5.5 / Tornado 2.0..2.2 BSP for F1N, B11, A12, D3, SC13, Kahlua Box, A15 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
MENMON (Firmware) for A12, D3, SC13 (object code) |
|
Documentation |
|
|
|
Kahlua Box product overview |
|
|
Application Note: Using P1/P501 Graphics on MEN 824x/ALI boards under ELinOS |
;)
This
board is an MEN product running Sysgo's ELinOS Embedded Linux. Sysgo
provides full support for MEN hardware. Please contact
QNX®
software for this MEN board is available from QNX® (
VxWorks®
software for this MEN board is available from WindRiver Systems. This does
not imply that the complete board functions have been tested in this
environment, nor that specific MEN BSP or driver packages are available. If
you don't find ordering numbers for additional VxWorks® BSP or driver
packages provided or recommended by MEN, please contact sales.
For
OS-9 BSP and driver support provided by MEN please refer to the ordering
numbers below.
XiBase9,
a graphical user interface for Linux and OS-9 from XiSys, is running on the
MEN graphics controller PC-MIP and PMC modules P1, P17 and P517 in
combination with the PowerPC-based Single-Board Computers A11, A12, D3, F1N,
B11 and SC13 (further SBCs on request). For more information, purchase and
support please apply to
