B402 - 3U VMEbus Intelligent I/O Controller

Product Description

The B402 CPU board is a universal intelligent VMEbus master and/or slave. Being equipped with sufficient local EPROM/Flash, SRAM, RTC etc., the 32-bit CPU (MC68332) handles one local M-Module.
The B402 makes use of the 16 TPU channels ("Time Processing Units") of the RISC CPU inside the 68332. The TPU channels provide user-defined intelligent timer functions, for example for signal analysis. All TPU lines for the on-board M-Module are available as TTL signals on row C of the M-Module I/O connector.
The B402 can access the VMEbus as an A24/A16/D16 master, and it can also perform slot-1 function. As a slave, the board has 2MB of genuine dual-ported RAM.
Due to its bus architecture and I/O modularity the B402 is suited for a myriad of applications. Together with an M-Module it can be used as a controlling computer or can fulfill I/O tasks in a VMEbus multimaster system.
Its genuine dual-ported RAM makes the B402 also an ideal choice for use as an intelligent data acquisition system or for handling local I/O tasks.
　

Technical Data

Microcontroller

32-bit CPU MC68332/20MHz
　

Memory

Up to 1MB "genuine" dual-ported SRAM
　

Up to 2MB EPROM (two 32-pin JEDEC sockets, also for EEPROMs or NOVRAMs)
　

Up to 1MB SRAM, battery backup possible via VMEbus
　

M-Module Extension

1 M-Module slot
　

Characteristics: A08, D08, D16, INTA, INTC, TRIGI, TRIGO
　

User-defined row of 60-pin connector
　

Interfaces

Serial interface via interface adapters (optional)
　

VMEbus

3U VMEbus form factor
　

A16, A24, D16
　

Single-level bus arbiter/RWD-ROR bus requester
　

Single-level interrupt handler/requester
　

Single-level location monitor
　

DTB master/slave
　

Bus timer
　

Miscellaneous

Programmable hardware watchdog
　

Battery-backed real-time clock
　

Eight user-programmable LEDs
　

One user-readable rotary coding switch
　

Single 5V power supply (except M-Module)
　

Electrical Specifications

Isolation voltage: 500V DC
　

Supply voltage/power consumption: +5V (4.85V..5.25V), 1A typ.
　

MTBF: 38,000h @ 50°C
　

Mechanical Specifications

Dimensions: single Eurocard (100mm x 160mm)
　

Weight: 140g
　

Environmental Specifications

Temperature range (operation):
• 0..+60°C
• Industrial temperature range on request
• Airflow: min. 10m³/h
　

Temperature range (storage): -40..+85°C
　

Relative humidity range (operation): max. 95% non-condensing
　

Relative humidity range (storage): max. 95% non-condensing
　

Altitude: -300m to + 3,000m
　

Shock: 15g/0.33ms, 6g/6ms
　

Vibration: 1g/5..2,000Hz
　

Safety

PCB manufactured with a flammability rating of 94V-0 by UL recognized manufacturers
　

EMC

Tested according to EN 55022 / 1999-05 (radio disturbance) and EN 55024 / 1999-05 (immunity) with regard to CE conformity
　

Software Support

MENMON
　

OS-9
　

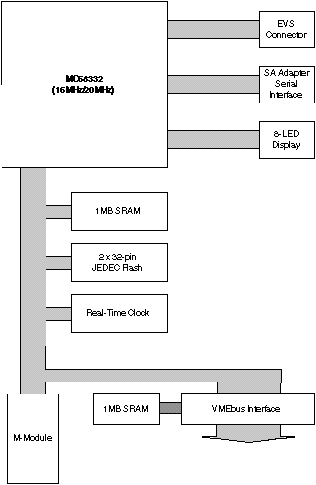

Diagram
