VDIN-96
VMEbus 96-channel digital input

Description

The VDIN-96 digital input board family offers up to 96 optionally opto-coupled digital inputs on one 6U VMEbus board. It is

ideally suited for use in industrial control and simulation systems which require a high number of parallel inputs.

It is available in different versions depending on the number of inputs, the input signal connection and the input voltage.

The versions without opto-couplers offer the input lines related to the digital GND-level. The opto-coupled versions have real

potential free inputs. The default input voltage for the VDIN-96 is either 5V or 24V (please specify when ordering).

Replacing the corresponding input resistor allows other input voltages (up to 100V). The input signal connection has to be

done at P2 for 32 inputs and at the front panel flat cable connectors for 64 inputs. The version with only 32 inputs is

available either for front panel or P2-connection. The VDIN-96 has various interrupt possibilities and supports all Z8536

features like interrupt on input pattern or change-of-state.

Features
- 32, 64 or 96 digital inputs
- input voltages 5V/24V, other voltages possible
- optional opto-isolated inputs
- counter/timer with trigger/gate activation
- change-of-state and pattern recognition interrupt
- front panel and P2-connection of input lines
- 30 kHz max. input frequency
- software driver for VxWorks, OS-9, pSOS+, UNIX (request for special drivers)

 Technical Specifications

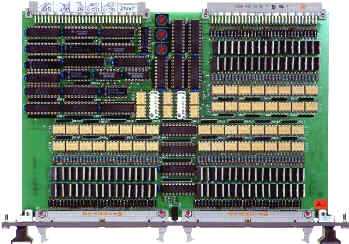

VDOT-96
VMEbus 96-channel digital power output

Description

The VDOT-96 digital output board family offers up to 96 optionally opto-coupled digital outputs on one 6U VMEbus board.

It is available in different versions depending on the number of outputs, the output signal connection and the output voltage.

The versions without opto-couplers offer the output lines related to the digital GND-level. The opto-coupled versions are

separated in 8 bit groups each related to one common external potential.

The VDOT-96 offers either 5V or 24V as output voltage; both voltages are supported by the manufacturer (please specify

 when ordering). Other output voltages are possible (e.g. 12V). Default source driver outputs, sink driver outputs optionally

 available in groups of eight outputs. The output current is maximum 1A supplied by integrated circuits which ensure short

 circuit and overheating protection. The output signal connection has to be done at P2 for 32 bit and at front panel flat cable

 connectors for the remaining 64 bit. The version with only 32 bit is available either for front panel or P2-connection. A

 failure of the integrated output drivers is indicated by a front panel LED and an interrupt signal to the VMEbus.

Features
- 32, 64 or 96 digital outputs, optional opto-isolated
- output voltages 5V/24V, other voltages possible
- source driver outputs, sink driver optionally
- output current 1A max.; short circuit and overheating protected
- front panel and P2-connection of output lines
- LED and interrupt error indication
- 30 kHz max. output frequency
- software driver for VxWorks, OS-9, pSOS+, UNIX (request for special drivers)

Technical Specifications
